SOLVED Promethium isn’t producing sound when engaged. New build, new mistakes

[delackattack]

Hey, I was planning on troubleshooting this in the morning, but if any of you might owls might spot what’s wrong with this before me, Id greatly appreciate it!



[carlinb17]

does the led light up when engaged?



[delackattack]

does the led light up when engaged?

Yes



[carlinb17]

and your cables for in and out are correct? (I've plugged them in backwards too many times to count when they were not boxed)



[delackattack]

Is lookin like theyre wired correctly on the IN/Out jacks



[carlinb17]

Is lookin like theyre wired correctly on the IN/Out jacks

sorry I meant when you plug into them are you sure your plugging into the correct ones, guitar-to in- and out to amp?



[delackattack]

sorry I meant when you plug into them are you sure your plugging into the correct ones, guitar-to in- and out to amp?

YEAH, I meant to clarify that as well . But i even tried it again with coffee in me and still no sound when the pedal is engaged.



[delackattack]

sorry I meant when you plug into them are you sure your plugging into the correct ones, guitar-to in- and out to amp?

Pots facing me, out cable on left side, etc



[carlinb17]

ok, one issue that I've also had an others is with the breakout boards solder can flow under them causing a bridge. can you check your continuity on the footswitch both on and off you should have pins 1 and 2 then when you cycle it you should have pins 2 and 3 but never 1 and 3. Like wise pins 7 and 8 then 8 and 9. not 7 and 9. I believe I listed that out correctly. Someone please feel free to correct if I messed it up. Cooking and trouble shooting....



[delackattack]

ok, one issue that I've also had an others is with the breakout boards solder can flow under them causing a bridge. can you check your continuity on the footswitch both on and off you should have pins 1 and 2 then when you cycle it you should have pins 2 and 3 but never 1 and 3. Like wise pins 7 and 8 then 8 and 9. not 7 and 9. I believe I listed that out correctly. Someone please feel free to correct if I messed it up. Cooking and trouble shooting....

I believe I checked the Continuity right and the throw seems to be fine. No bridges. Maybe might be worth reflowing them a little



[carlinb17]

Do you have an audio probe, if not it’s easy to make one.



[delackattack]

Do you have an audio probe, if not it’s easy to make one.

I do not



[JamieJ]

Yep - I second the use of an audio probe.

Do you have a multimeter? When you soldered the ICs straight to the board they could have been overheated. So checking the voltage on the ICs will tell if they have been damaged.

It would also be helpful to have a picture of the solder side of the board.



[delackattack]

Yep - I second the use of an audio probe.

Do you have a multimeter? When you soldered the ICs straight to the board they could have been overheated. So checking the voltage on the ICs will tell if they have been damaged.

It would also be helpful to have a picture of the solder side of the board.

Gimme just a moment and Ill post a picture



[delackattack]

Here’s the under goods



[carlinb17]

Audio probe how to build and properly use it

Tutte le novità del mondo diypedalgearparts

www.diypedalgearparts.com

Here’s the first thing I found to making one. There are also tons of mentions throughout the forum



[delackattack]

Yep - I second the use of an audio probe.

Do you have a multimeter? When you soldered the ICs straight to the board they could have been overheated. So checking the voltage on the ICs will tell if they have been damaged.

It would also be helpful to have a picture of the solder side of the board.

I relaxed the IC that I guess wasn’t giving me any readings, so I swapped it out with a socket as well and still nothing when pedal is on. Clean tone comes through when off



[carlinb17]

Audio probe time… you can either start at the end and keep going until you get sound or start the beginning and go until you lose the sound



[delackattack]

Audio probe time… you can either start at the end and keep going until you get sound or start the beginning and go until you lose the sound

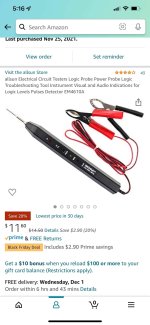

Would something like this work?
I’m just out and about and it’s not that expensive.



[Nostradoomus]

What did you put in Q1 and where did you get it? JFETs are jerks.
