G'day,
Uploaded all my Kicad libraries into a .rar file - there's symbols linked to footprints linked to 3D models for just about everything you could ever need to build a pedal or amp.
All basic parts have suitable fab house/CNC option for footprints, and have a much wider range of stuff than the usual libraries I've found - DC-DC modules, a handful of tubes (both socketed and subminis), fuses, relays, enclosures, stacks of different switch types, etc. Many of these didn't have matching 3D files so I've made them from datasheets.
99% has been used in boards I've had made or made myself and are all good - just double check my work obviously as I'm not infallible.
Link here >>> https://drive.google.com/file/d/1ynHSO4P0ULKJjIBKcFnbeheECpWSUrIa/view?usp=drive_link

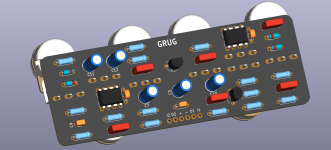

Examples:
