Help with Terrarium

jhaneyzz

jhaneyzz

Well-known member
I'm thinking it might be a good idea to ask first, solder second on this build.

  1. The build doc doesn't even specify the proper orientation of the Seed board (picture show it in my best guess orientation but it is not soldered in) is this correct, or does it need to be flipped.
  2. Is there anything I need to know about the components that go under the board? I assume I have to solder the TL072 in without a socket. Wouldn't really make any sense to be socketed anyway.
  3. Anything else I'm not thinking of?




Sort by date Sort by votes
I agree it could (and should) be made more obvious, but pin 1 is square and surrounded.


And that corresponds to the same pin 1 indicator on the Seed.


Definitely install it into female pinheaders in case you want to remove (or replace) it in the future.

Upvote 0 Downvote
Robert said:
Whenever I get around to updating the docs I'll make it a bit clearer, you don't want to install it backwards and those Seeds are a bit more expensive than an opamp.
Robert said:
I agree it could (and should) be made more obvious, but pin 1 is square and surrounded.
View attachment 64322

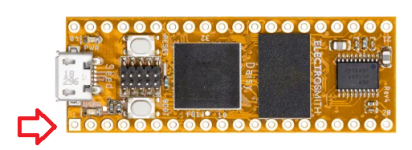

And that corresponds to the same pin 1 indicator on the Seed.
View attachment 64323


Definitely install it into female pinheaders in case you want to remove (or replace) it in the future.
Click to expand...
In my defense, I bought the presoldered board and the square pin was covered in solder.
Click to expand...

Upvote 0 Downvote
