SOLVED Hybrid Yellow Tonebender stripboard build: tone pot weirdness

[ragamuffin]

I breadboarded and then built a Yellow Hybrid Tonebender clone on stripboard based on this Dirtbox Layouts page. It seemed to be working fine on the breadboard, but now that I built it on stripboard something seems off with the "tone"/"treble-bass" knob. At full CCW/treble side it sounds good, but after around 11:00 it starts to get quite muffled sounding and loses a considerable amount of volume as I turn clockwise.

Changes from the schematic: I changed R11 from 220k to 470k to get the Q3 collector voltage close to 2.6V, and I changed C9 in the tone section from 100nF to 47nF.

I've verified all the resistor/cap values, looked for shorts, checked that cuts+jumpers seem to be in the right spots, and re-flowed everything. Any suggestions on places that I should be looking next? Thanks guys



[z2amiller]

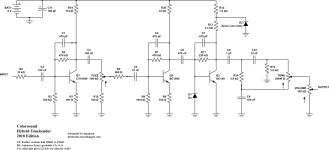

Maybe here? Based on the schematic, if you've got something wrong when tone is cranked clockwise, it implicates C10/R15. If C10 is bridged it turns the RC high-pass filter into an R no-pass filter



[z2amiller]

Maybe here? Based on the schematic, if you've got something wrong when tone is cranked clockwise, it implicates C10/R15. If C10 is bridged it turns the RC high-pass filter into an R no-pass filter

ooooh, or - the stripboard layout assumes C10 @ 33nF is one strip long, but you've got the wima in there that spans 2 strips.



[ragamuffin]

ooooh, or - the stripboard layout assumes C10 @ 33nF is one strip long, but you've got the wima in there that spans 2 strips.

Oh wow I think that's it! Thanks, I'll give it a look/try to fix it tomorrow



[BuddytheReow]

Clean the tracks with your iron. There look to be some bridges in there or it could just be the pick. Has the layout been verified?



[ragamuffin]

Solved! It was the 33nF capacitor being longer than the one in the layout. I pulled it out, bent the legs in a bit, and put it back in the right spot and now it's sounding great! Thanks guys
