Bohemia trouble

Pcustoms

New member
So something weird is happening, I have everything wired up up for the Bohemia, I get sound from the pedal when it's off, but I get no signal at all when I switched it on. I have the 4393 in there and the 2n222a in backwards like it asks. It's been bugging me for a while now. Any help would be appreciated!

Where did you get your 4393s? Did you test them before installation?

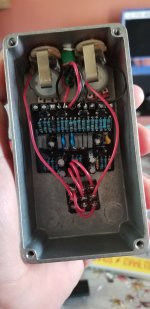

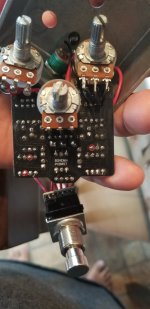

A picture of the solder side of the board may be helpful, some of your pot soldering on the top side looks pretty cold and blobby.

But perhaps most importantly, do a thorough inspection of your values as you have a 1M at R10. Should be 1K.

Where did you get your 4393s? Did you test them before installation?

A picture of the solder side of the board may be helpful, some of your pot soldering on the top side looks pretty cold and blobby.

But perhaps most importantly, do a thorough inspection of your values as you have a 1M at R10. Should be 1K.

I just saw that and hopefully that helps, I'm gonna go through and check all my values

I got my 4393 from digikey


Attachments

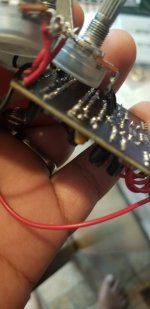

  • 20200517_093550.jpg
    827 KB · Views: 11

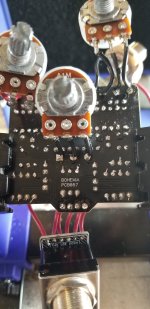

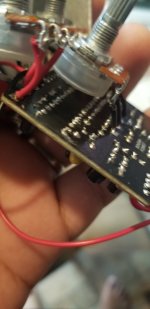

  • 20200517_093552.jpg
    954.3 KB · Views: 13
  • 20200517_093539.jpg
    1,008.1 KB · Views: 12
I swapped it and reflowed most if not all the joints. I'm still getting nothing when I engage. I still have to go through the other values. Also where the 2n2222a should be I have a pn2222


Attachments

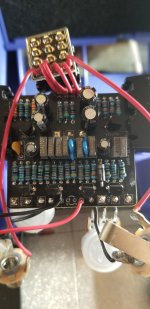

  • 15897361276688555708621170409874.jpg
    951.3 KB · Views: 13

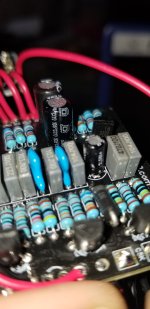

  • 15897361574197592305915378685813.jpg
    954.4 KB · Views: 12
  • 15897362909448709715563027193883.jpg
    937.8 KB · Views: 9
If you have a PN2222A it should be opposite the print screen on the PCB!

If you have a 2N2222A it should be opposite the Print screen on the PCB!

If you have P2N2222A it should be matching the Screen Print on the PCB!

C2 - 47P looks like it has no Solder, I physically see a hole!
