Distortr Problem

[tonemonster]

Hey greetings from Germany,

I build the distortr https://www.pedalpcb.com/product/pcb014/

I think it's the 20th Pedal that I build.
All worked fine, but not this Distortr!

Bypass signal works.
When the pedal is on its very very very quiet.
The vol and gain potis working,
There is a very quiet sound out of the amp.
But... When I turn the tone poti clockwise the quite loudness is gone. There's no sound it's quite dead. What could it be?
Thanks Klaus



[RhPf Electronics]

Hey hey grüezi from der Schweiz!
Did you use a BS170 or 2N7000? both have different pinouts



[tonemonster]

Grüezi
All three are bs170 . The flat side is like the layout



[Erik S]

If I’m reading the build doc right, this is r18 and should be 82ohm, but looks might be an 82k.



[swelchy]

must be a different board revision from build doc because current build doc shows diode in that location as well.... either way 82k was for R15 and 82ohm/ 82R was for R18.



[tonemonster]

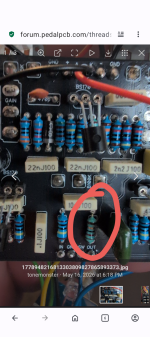

I found this....

Than is that part wrong too i think...? I am a little colour blind. I think I've over read the K a the parts label



[swelchy]

YUP



[tonemonster]

Oh you're all so great. Thank you. I change i tomorrow and give a response



[tonemonster]

Holy moly thanks ! It works. Wat a great Pedal.
This sounds huge and dynamic!
Tele mach1 DRV hotcake distortr badcat cub!
Very very great pushed sounds

Big thanks for your help!
