AionFX Goes Cornish...

[Fingolfen]

Just released the NG-3, GC-1 and P-2.

NG-3 tracing info: https://aionfx.com/news/tracing-journal-cornish-ng-3/

GC-1 shares an updated CC-1 board / instructions: https://aionfx.com/news/tracing-journal-cornish-gc-1/

P-2 shares an updated G-2 board - though it appears there is a separate blend board not yet released: https://aionfx.com/news/tracing-journal-cornish-p-2/



[fydo]

There's an interesting claim about the Cornish P2 on that last tracing journal. is it true that it hadn't been traced before? What is PedalPCB's Polonium 2 based on? I was curious enough to compare the schematics but the schematic for the Polonium 2 isn't available yet.



[Fingolfen]

I'm guessing he did it in parallel or missed the fact that Robert had already traced it...



[Robert]

is it true that it hadn't been traced before? What is PedalPCB's Polonium 2 based on?

Nah, an original P-2 (and NG-3) was traced about a year ago.








I'll get the schematic up shortly, there are a few component differences compared to Aion's trace.



[Bricksnbeatles]

I'll get the schematic up shortly, there are a few component differences compared to Aion's trace.

According to Aion:

Note: The unit that we traced was a P-2 Blend. The blend circuit is on a separate PCB. We will be releasing the details of the blend circuit in some form soon, but for today we are just covering the P-2 circuit itself, which is the same as the non-Blend P-2.

Perhaps a few parts are subbed out on the boards that are designated to be paired with the blend board



[Robert]

According to Aion:

Perhaps a few parts are subbed out on the boards that are designated to be paired with the blend board

Very likely, I know Kevin is thorough in his traces. We're not talking huge variances.



[Fingolfen]

I'm interested in seeing what the blend board is like... personally I love the Polonium 2... I've built... a... few... at this point...



[Coda]

Which one is YATS?…



[Feral Feline]

I used to get the black-epoxy for gooping my boards from my Amp Sifu...

... Now that we're on opposite sides of the pond, I don't know where to get it.

For the sake of authenticity in building Cornish, Klon, and other kludges...
Any suggestions on where to get the goo?



[Robert]

Any suggestions on where to get the goo?

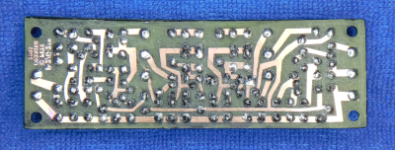

I honestly think it's either spray paint or nail polish.... It has a tacky/soft feeling, it doesn't feel fully cured like epoxy.

Soak a paper towel in acetone, lay the PCB on it for about 5 minutes, then it's like a big scratch off lotto ticket.



[Fingolfen]

Nah, an original P-2 (and NG-3) was traced about a year ago.

I'll get the schematic up shortly, there are a few component differences compared to Aion's trace.

I just re-read this - do you have an NG-3 board????



[Robert]

I just re-read this - do you have an NG-3 board????

Not yet, it's traced and in my pile of stuff to do though.



[Fingolfen]

Not yet, it's traced and in my pile of stuff to do though.

I get the whole "pile of stuff" - I've got a small herd of boards to validate at this point.
