Missing Build Docs / Schematics

[GuitarZero]

Hello any update on the Sproing Deluxe reverb BD? Thanks

I'd love to see this as well. I can see the BOM, but don't know where each resistor / capacitor is supposed to go. I've seen other threads that say "swap R8 with a 10K for more reverb", but I don't know what the current value of R8 should be when buying components.



[Feral Feline]

I'd love to see this as well. I can see the BOM, but don't know where each resistor / capacitor is supposed to go. I've seen other threads that say "swap R8 with a 10K for more reverb", but I don't know what the current value of R8 should be when buying components.

I just checked my Sproing Deluxe PCB and R8 is 10k; I do not have the regular Sproing PCB, so I can't say what R8 is for that one.

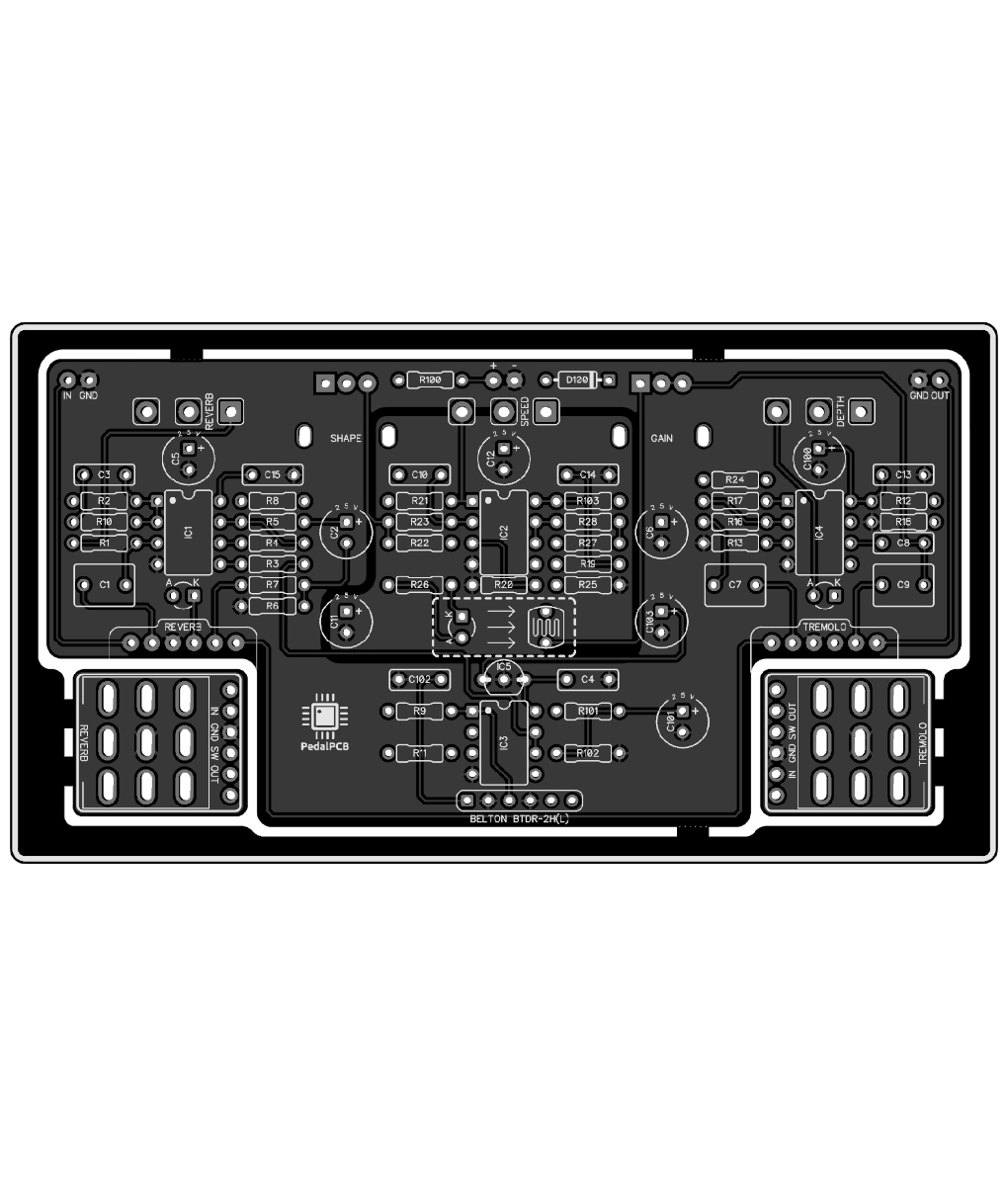

Between the pic below and board-in-hand with values silkscreened on, you're good to go.



[music6000]

I believe it's R8- 39K on the Sproing, 10K on the Deluxe!
The lower you go, The more spacial it gets!
I settled on 25K on my Sproing & it sounds Great!
You could use a Trimit PCB with a 50k Trimmer & you can set where you want



[DeadAirMD]

@Robert, hey bud, just wanted to take a second to thank you for dropping Docs with your new PCB releases recently. I know all of us absolutely LOVE that the parts are silkscreened on the boards, but it's always so nice to scope the schematic.

Hope you have a wonderful rest of your weekend.

My backlog of your PCBs alone is 27..........and always counting of course.



[temol]

Can we have the Mystery Meat schematic please?
...and Scabbard too?



[foaminginfection]

Any news on the build docs for the Tone Generator? Bought the thing like two months ago.



[Nostradoomus]

Any news on the build docs for the Tone Generator? Bought the thing like two months ago.

what do you need? BoM is here

1590A Tone Generator

https://www.pedalpcb.com/product/pcb668/

forum.pedalpcb.com



[StovenHoof]

Acrobat Parametric Distortion is still Build Doc-less.
I found the cheat sheet for it, but having the schematic is always helpful.



[y-u-no-f800b]

Acrobat Parametric Distortion is still Build Doc-less.
I found the cheat sheet for it, but having the schematic is always helpful.

+1 for acrobat doc
hard to do mods without a schem



[disssa]

@Robert
Is there no way to get the schematics for the Drebbel Preamp?



[Robert]

@Robert
Is there no way to get the schematics for the Drebbel Preamp?

It's in the doc.

https://docs.pedalpcb.com/project/Drebbel-PedalPCB.pdf



[disssa]

Grazie!



[BrownMagic]

I'm also hoping to see the acrobat build docs. I have a Stone Deaf pedal and want to build a modified version for myself. Waiting to see the docs before I purchase the PCB.

Thanks again!



[Fingolfen]

I'm also hoping to see the acrobat build docs. I have a Stone Deaf pedal and want to build a modified version for myself. Waiting to see the docs before I purchase the PCB.

Thanks again!

I'll second this one - I want to make sure I get the jack grounding right as well...



[Robusto]

Were the Tone Generator build docs ever posted?

Nope.



[Robert]

BOM is here:

1590A Tone Generator

https://www.pedalpcb.com/product/pcb668/

forum.pedalpcb.com

Drill template is here: (milling/filing is required if drilling by hand but I'll post a template shortly for those who want to do it)

Tayda Electronics Drill

Tayda Electronics Drill Designer for custom enclosures.

drill.taydakits.com

There is no offboard wiring aside from the battery snap.



[karter3000]

Hi @Robert, just wondering if you post the build docs for the Basstortr. I have some idea based on the cheat sheets and Distortr build docs but I wanted to be sure.



[Robert]

Hi @Robert, just wondering if you post the build docs for the Basstortr. I have some idea based on the cheat sheets and Distortr build docs but I wanted to be sure.

I'll try to get this posted for you today.



[karter3000]

I'll try to get this posted for you today.

Thanks very much!



[Many__Of__Horror]

Hi @Robert , are you able to share the schematics for the Zorkmid Overdrive please?
