add some pink LEDs for the tube lighting and you can say Oooh Lah Lah!Why thank yeI didn't have enough pink or purple knobs on hand, but silver looks good, I think this is a winner.
View attachment 57261
New project stuff maybe?
- Thread starter vigilante398
- Start date
vigilante398
Authorized Vendor
I probably will. I originally put the reds in because I was planning to do a matte black enclosure, but now I think pink would be appropriate.
vigilante398
Authorized Vendor
I thought about it, but I'll probably leave the official title as Supersonic. Uberschall is German for supersonic, for those that didn't know.I hope this becomes the official title for the project
much better than making any references to Pepto Bismol and Diiaarrriiiiiiaaaaaa
Paradox916
Well-known member
So the $$$ question what are you asking for one of these PCBs?Why thank ye
View attachment 57261
Laundryroom David
Keyboard Cowboy ðŸ¤
Bahahahahahahahahahaha
Laundryroom David
Keyboard Cowboy ðŸ¤
I use waterclear pink LEDs as my go-to indicator LEDs. Love it.
vigilante398
Authorized Vendor
I figured that would come up. I actually ordered enough on this batch that I can start selling them, but the enclosure issue is the complicated bit. Because the Tayda enclosures are too thick your choices are either get one of those and counterbore it yourself or buy a milled and counterbored enclosure from me.
So for the PCBs I'm thinking $32 (they're very large 6-layer PCBs that will include 6 daughter boards). I'll have to think about what I would charge for enclosures. There's setup time + my power bill (takes 2 hours to mill one of these) + consumables (lubrication, wear and tear on bits, etc). Maybe $25 for an enclosure? I hate this part because I need to make money or it doesn't make sense for me to spend time on things, but I also want things to be reasonably priced. I guess PCB + enclosure is still cheaper than buying 4 tubes though.
4 TUBES??? IN THIS ECONOMY???
Folks here understand these boards and enclosures are top shelf stuff and also recognize the value in your time. Plus dealing with Jeff. : ^ )
Paradox916
Well-known member
Well considering it’s two independent channel tube preamp of a complex and arguably one of the most notorious hi gain circuits; I don’t think anyone in their right mind is going to expect it to be a $12 pcb, it’s a project that someone has to really want, definitely isn’t for the noob that has a hard time getting a TS to work and complains about the price
vigilante398
Authorized Vendor
No promises, but I'll think about it.$25 is quite reasonable I think, considering all the effort!
Curious though, would you consider selling a "finished enclosure" option at a higher price? I absolutely adore the pink "Live, Laugh, Love" design you've got going there.
vigilante398
Authorized Vendor
Sure thing. I don't really want to do a full build instructions for this one, so I may just give you a BOM and a schematic and a couple pointers then tell you to go for it. If you've never built a Sushi Box/C2C pedal before, this is a terrible one to start with, so hopefully you should be able to figure it out based on what you know of the others.

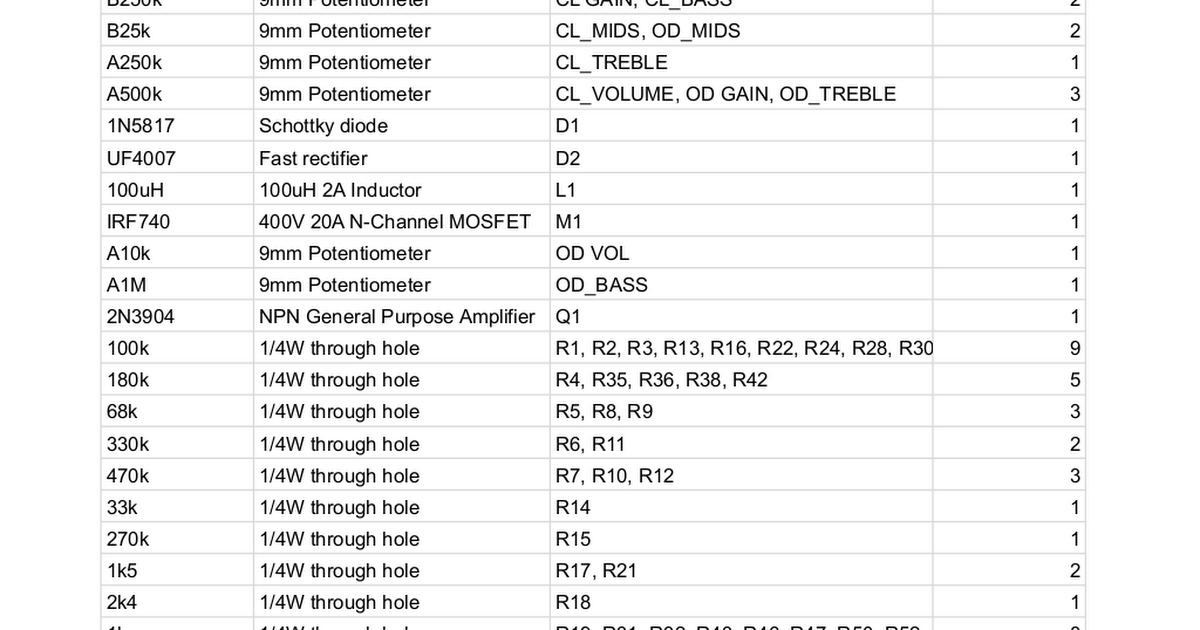

Supersonic Parts List
Sheet1 Comment,Description,Designator,Quantity 22n 630V,Film cap, HV,C1, C2,2 2n2,Film cap,C3,1 3n3,Film cap,C4, C17,2 100n 630V,Film cap, HV,C5, C27,2 22n,Film cap,C6, C13,2 330p,Ceramic capacitor,C7, C8, C19,3 47n,Film cap,C9, C24,2 470n,Film cap,C10,1 4u7,Electrolyitic capacitor,C11,1 2u2,Ele...
What is the minimum requirement for Power Supply?Sure thing. I don't really want to do a full build instructions for this one, so I may just give you a BOM and a schematic and a couple pointers then tell you to go for it. If you've never built a Sushi Box/C2C pedal before, this is a terrible one to start with, so hopefully you should be able to figure it out based on what you know of the others.
Supersonic Parts List
Sheet1 Comment,Description,Designator,Quantity 22n 630V,Film cap, HV,C1, C2,2 2n2,Film cap,C3,1 3n3,Film cap,C4, C17,2 100n 630V,Film cap, HV,C5, C27,2 22n,Film cap,C6, C13,2 330p,Ceramic capacitor,C7, C8, C19,3 47n,Film cap,C9, C24,2 470n,Film cap,C10,1 4u7,Electrolyitic capacitor,C11,1 2u2,Ele...docs.google.com
vigilante398
Authorized Vendor
Oh man, it's a lot. Let me go measure it.
EDIT: with all the LEDs on it's pulling 855mA on a 9.4V supply. While the tubes were warming up it spiked around 1.7A (it's a benchtop supply with a lot of headroom for current), but you can probably get away with 1A or so.
so, with standard multi tap supplies...turn this 1 on 1st, got it! Would going for Smurfsonic on the blue be a tidge to far?
vigilante398
Authorized Vendor
Smurfsonic would be excellent, I approveso, with standard multi tap supplies...turn this 1 on 1st, got it! Would going for Smurfsonic on the blue be a tidge to far?
For a multi-tap supply you would almost definitely need a current doubler cable (which aren't hard to make if you don't have one) where you connect two taps in parallel. Something like a Cioks brick would be able to give you 1320mA @ 9V that way, which would be great.
