Robert
Reverse Engineer
For the most part.
The NOTAKLON uses schottky diodes instead of germanium and is true bypass. The Shamrock switch throws a pair of LEDs in parallel with the schottky diodes and drops the value of R15 (in the Kliche) to 27K.
The power supply is a bit more complicated than the original but delivers the same voltages. Thankfully no diode to ground polarity protection.
It also uses quite a few series / parallel resistor pairs to simplify the BOM.

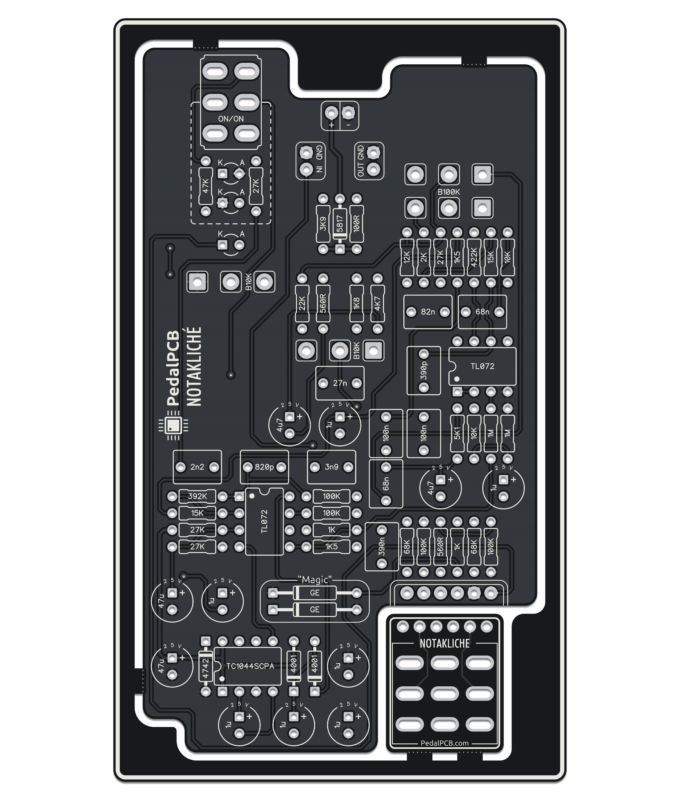

For the NOTAKLICHE I kept the original buffered bypass and left the footprints for the clipping diodes sized for germanium so either could be used.
I used the same non-destructive power supply as the Kliche Mini SE since this is basically just a modified version of that project.
I also kept the single equivalent resistors rather than adding a bunch of extras all over the place.
Oh, and yeah, the NOTAKLICHE does require some soldering....
jesuscrisp
Well-known member
This seems... odd? Schottkies in parallel with LEDs would basically make the LEDs useless anyway, as only the lower forward voltage drop diodes will clip.
chongmagic
Well-known member
You should rename the switch WWJD.
Robert
Reverse Engineer
This is apparently how the Shamrock mod has always worked and....
is the inspiration behind the naming of the WDJD toggle switch. "What Did Josh Do??"
I didn't want to upset anyone so I changed it up a bit.
I was torn between that and NOTASWITCH... but then I would have wanted to name the project NOTAKÏT.
