Regarding the Paragon - does @Robert or anyone happen to have handy the labels for the bottom I/O holes? E.g., typical PPCB boards are in-gnd-sw-out. But the Paragon is unique and not labeled, and also not in the docs. I’m using my own bypass board for my Paragon build.

taking a stab at it before @Robert corrects me... From the left side....INPUT JACK/CIRCUIT BOARD IN/LED +/CIRCUIT BOARD OUT/GROUND/CIRCUIT BOARD IN (from side 1)/LED +/CIRCUIT BOARD OUT/OUTPUT JACK



[Feral Feline]

No schematic but BOM and template are posted here

https://docs.pedalpcb.com/project/drill/125B_DrillTemplate_Lycan.pdf

taking a stab at it before @Robert corrects me... From the left side....INPUT JACK/CIRCUIT BOARD IN/LED +/CIRCUIT BOARD OUT/GROUND/CIRCUIT BOARD IN (from side 1)/LED +/CIRCUIT BOARD OUT/OUTPUT JACK

Dude!

Yer killin' it!
Such Robust support for Robert, it's like you're his left-hand man, freeing him up to keep making the already-Robust list of PCBs PedalPCB offers even more Robust.

On behalf of the Robust roster of PedalPCB-forum punters and paying patron-lurkers alike, whether they want me to or not, I'm giving a Robust thanks to your positively Robust positivity and Robust help to Robert and fellow forumighty users.



[Robert]

taking a stab at it before @Robert corrects me... From the left side....INPUT JACK/CIRCUIT BOARD IN/LED +/CIRCUIT BOARD OUT/GROUND/CIRCUIT BOARD IN (from side 1)/LED +/CIRCUIT BOARD OUT/OUTPUT JACK

Yep, that's correct.



[Nostradoomus]



[spi]

If the acrobat bom or schematic has been posted, I can't find it. Anyone have it?



[Nostradoomus]

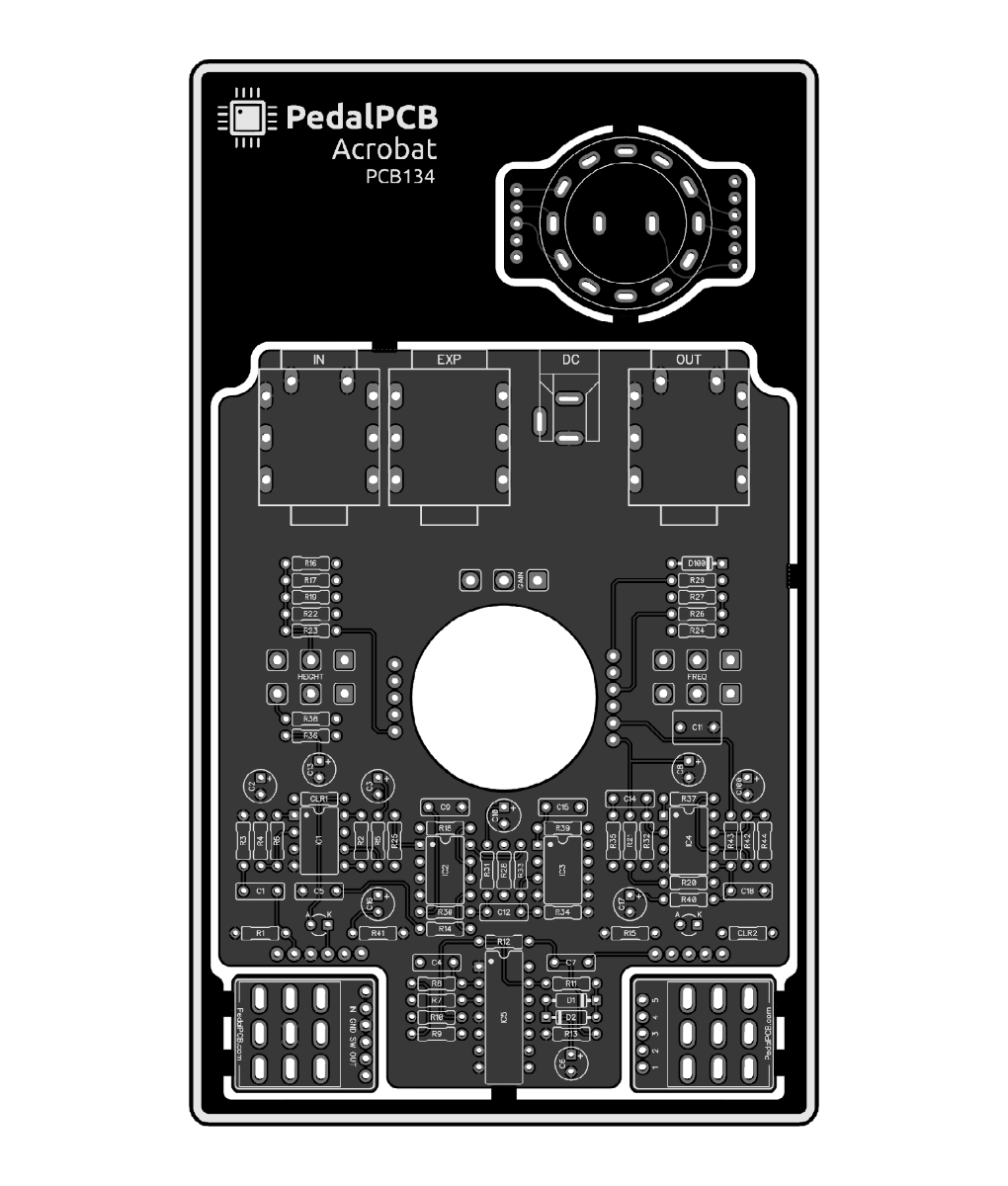

Thread 'Acrobat Parametric Distortion'

Apr 30, 2024

Acrobat Parametric Distortion - PedalPCB.com

Compare to Stone Deaf FX PDF-2

www.pedalpcb.com

• Robert
• Replies: 36
• Forum: Project BOM cheat sheets

•
•
•



[ColShaner75]

hey @Robert mind if i get the MicroBuffer drill image and part number/spec for the Neutrik style phone jacks on it?
thanks!

Did you happen to find a drill guide for the Microbuffer? I’m needing one too.
Thanks.



[GordyLee]

Hi All, Just received my first ever order of boards from PedalPCB and was just wondering when the Build Doc for the Salesman Overdrive is going to be posted? I'm sure I could build it without them (I do have the Chili Dog BOM), but it would be easier with them on hand. Thanks!



[scott3t]

Waiting for the build doc for Double Pendulum Harmonic Trem. Its been over a year and I want to troubleshoot my build



[Robert]

Waiting for the build doc for Double Pendulum Harmonic Trem. Its been over a year and I want to troubleshoot my build
