Poison Apple Diode reversed?

[BADSANTA]

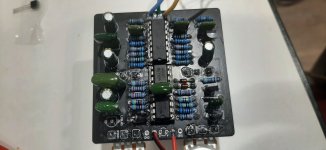

Poison Apple Auto-Wah is my third pedal. After hooking up the battery, IC4 (L78L05) blew out. Measuring voltage on pins one and three of the Ic4, I have about 8v. Pin one should have 5v coming out of it. Looking at the schematic, D4 (1n4004) would have 9v landing on pin one. I looks like D4 is reversed in the schematic and the PCB board. Am I wrong here? New to this game. Any help would be appreciated thanks.



[Laundryroom David]

Looks right to me. What kind of power source did you plug into it?



[Robert]

I looks like D4 is reversed in the schematic and the PCB board. Am I wrong here?

You are absolutely right. Install it backwards or omit it, it'll work perfectly fine without the diode.

This is why I dislike using internet sourced schematics.... I've already corrected a handful of errors from the schematic that was originally used, but somehow managed to miss this one.



[Laundryroom David]

BUT THE SOLDERING



[jimilee]

Maybe turn the heat down a bit.



[Laundryroom David]

Too much tylenol and not enough sleep, ya’ll. I apologize.



[BADSANTA]

Thanks Robert and everyone else for the input. I thought I was going crazy.

"BUT THE SOLDERING" lol I did have the temp up to high, about 400. Also I need some smaller Cap's.
